Silicon Wafer 11N (99.999999999)%, 150MM (6 Inch)

11N Ultra-High Purity Monocrystalline Silicon Wafers (150 mm / 6-Inch)

The Pinnacle of Material Purity for Advanced Microelectronics

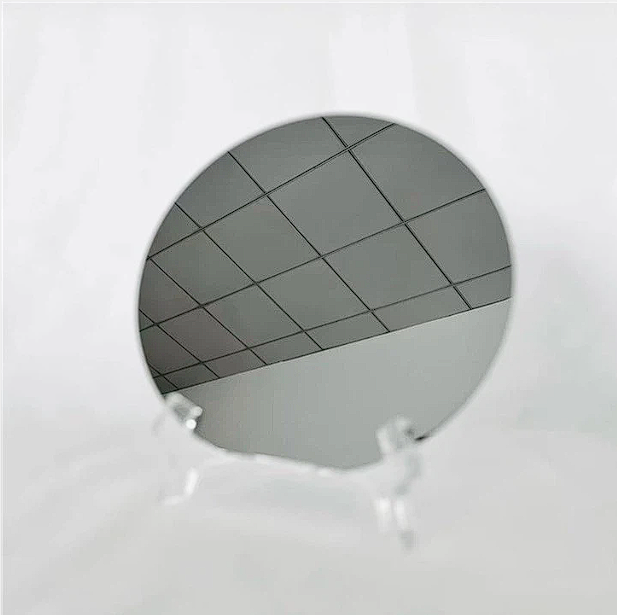

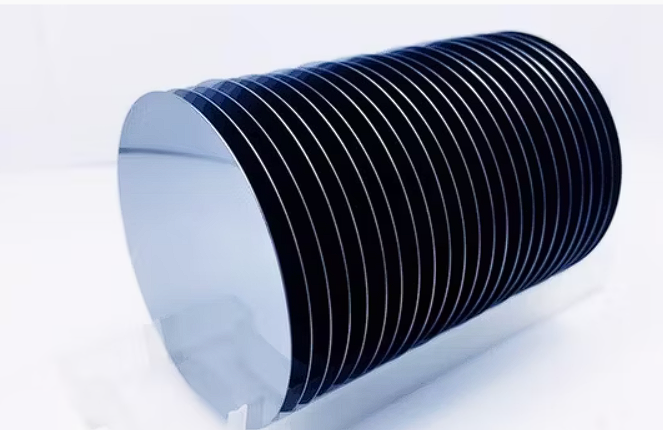

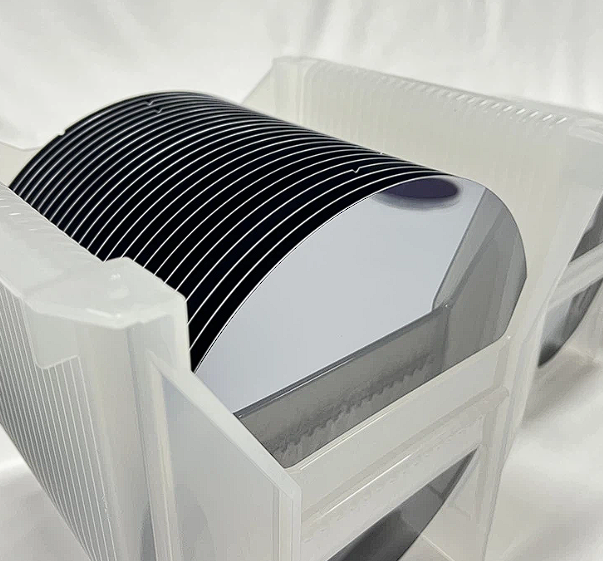

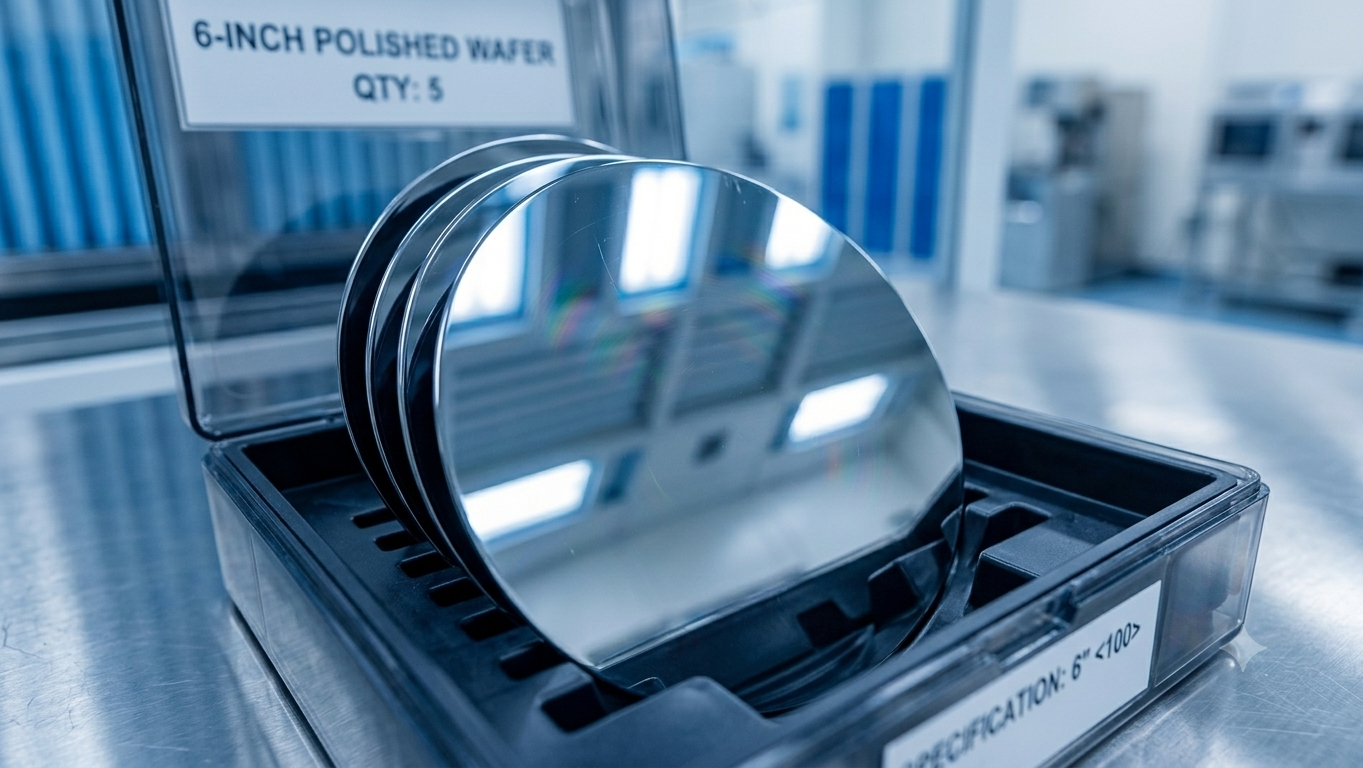

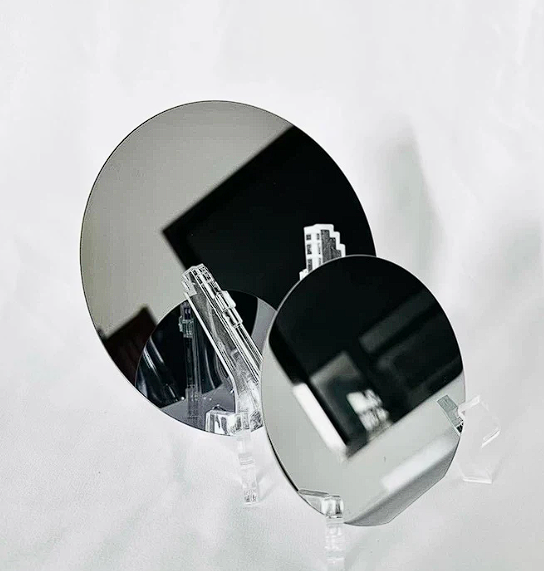

At INNOWAFERS, we engineer the ultra-pure physical foundation upon which next-generation electronic systems are built. Our 150 mm (6-inch) monocrystalline silicon wafers are refined to an extraordinary 11N purity level (99.999999999%), setting a benchmark in material perfection. Engineered specifically to eliminate trace-level metallic contaminants, crystal dislocations, and micro-defects, our 11N silicon substrates provide unmatched yield reliability for the most demanding semiconductor fabrication processes.

Ideal Applications

• Power Electronics: MOSFETs, IGBTs, and high-efficiency power conversion modules for automotive (EV) and industrial grids.

• Analog & Mixed-Signal ICs: Precision sensors, signal processors, and specialized integrated circuits requiring high signal-to-noise ratios.

• Optoelectronics & Photonics: Photodetectors, specialized laser diodes, and optical sensors demanding minimal lattice disruption.

• R&D and Microfabrication: Foundational substrates for advanced university research, MEMS development, and pilot prototyping lines.
