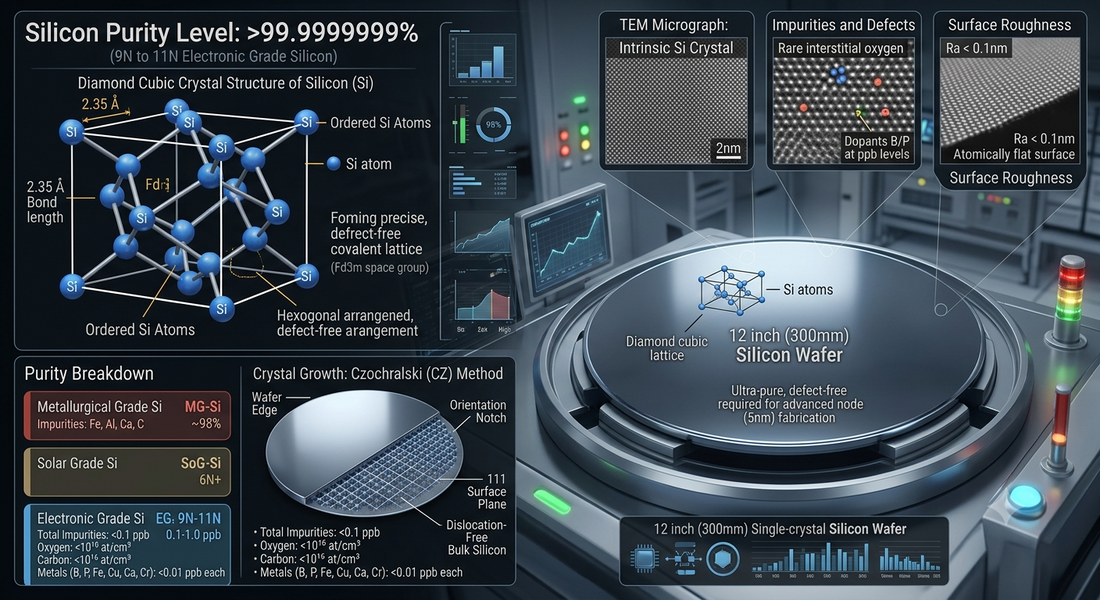

Understanding Purity Levels

Understanding Purity Levels

UNDERSTANDING 11N PURITY SILICON WAFERS: WHAT MAKES THEM CRITICAL FOR SEMICONDUCTORS

Published: February 2026 | Category: Technical Deep-Dive | Read Time: 14 minutes

INTRODUCTION

You're a semiconductor device engineer evaluating wafer specifications for your next-generation power device.

Your supplier sends you a datasheet. You see "11N purity, 150mm diameter, Czochralski growth, TTV ≤ 10 μm, resistivity 1-20 Ω·cm."

But what does all this actually mean? Why does "11N" matter? Why can't you just use cheaper 8N or 9N silicon?

The answer lies in a fundamental truth: semiconductor device performance is built on wafer purity.

A single impurity atom—one in a billion billion silicon atoms—can destroy device performance. This article explains exactly what 11N purity means, why it's critical, how it's measured, and how it impacts your final product.

PART 1: WHAT IS WAFER PURITY?

Silicon Purity Grades Explained

Silicon purity is measured in "nines" (N). Each additional "nine" represents removing an order of magnitude more impurities.

Purity Grade Percentage Meaning Impurities per Billion
6N 99.9999% Six nines 1,000 ppb
7N 99.99999% Seven nines 100 ppb
8N 99.999999% Eight nines 10 ppb
9N 99.9999999% Nine nines 1 ppb
10N 99.99999999% Ten nines 0.1 ppb
11N 99.999999999% Eleven nines 0.01 ppb

What Does This Mean in Real Numbers?

Imagine a silicon wafer is a stadium with 100,000 seats.

  • 6N purity: 1 person in the wrong seat
  • 8N purity: 1 person in 10,000 seats
  • 11N purity: 1 person in 100 billion seats

In actual silicon:

A 150mm wafer contains approximately 10^23 silicon atoms (10 septillion atoms).

At different purity levels, this means:

Purity Impurity Atoms in One Wafer
6N 10^17 impurity atoms
8N 10^13 impurity atoms
10N 10^11 impurity atoms
11N 10^10 impurity atoms

An 11N wafer contains roughly 10 billion impurity atoms total.

This sounds like a lot until you realize:

  • Each silicon atom is 2.35 Ångströms (0.235 nanometers) in size
  • A single impurity atom in a specific location can short-circuit 1,000+ silicon atoms around it
  • In power devices operating at 600V with 1000A currents, a single impurity in the wrong place = catastrophic failure

PART 2: COMMON IMPURITIES IN SILICON

Why These Specific Impurities Matter

Semiconductor-grade silicon contains traces of various elements:

1. Iron (Fe)

Sources:

  • Crucible contamination during crystal growth
  • Equipment wear particles
  • Dust in manufacturing environment

Impact on Devices:

  • Forms deep energy levels in silicon bandgap
  • Acts as "trap" for charge carriers
  • Result: Leakage current increases exponentially
  • Power device: 1 ppm iron → 100x increase in reverse leakage current

11N requirement: < 0.1 ppb iron (vs. 1 ppb for 10N)

Cost impact: Removing last 90% of iron is 10x more expensive than removing first 90%

2. Oxygen (O)

Sources:

  • Silicon dioxide (SiO2) on wafer surface
  • Absorbed from air during crystal growth
  • Residual gas in Czochralski furnace

Impact on Devices:

  • Creates recombination centers
  • Reduces minority carrier lifetime
  • In power devices: Reduces switching speed, increases losses
  • In analog devices: Increases noise floor

IGBT manufacturer finding:

  • 8N silicon (15 ppm O): 200W power loss @ 600V
  • 11N silicon (5 ppm O): 150W power loss @ 600V
  • Oxygen reduction = 25% efficiency gain

11N requirement: ≤ 15 ppma oxygen (controlled, not total elimination)

3. Carbon (C)

Sources:

  • CO/CO2 gas in growth environment
  • Silicon carbide formation on crucible
  • Hydrocarbon residues

Impact on Devices:

  • Forms recombination centers (like oxygen)
  • Reduces carrier lifetime
  • Creates stress points that lead to micro-cracking
  • In mechanical: Wafer cracking during dicing or mounting

Wafer fab experience:

  • Wafer cracking during device fabrication: 2-3% at 8N carbon
  • Wafer cracking during device fabrication: 0.1% at 11N carbon
  • Yield improvement: 2.9% from carbon reduction alone

11N requirement: ≤ 1 ppma carbon

4. Copper (Cu), Nickel (Ni), Chromium (Cr)

Sources:

  • Equipment corrosion
  • Handling by gloved workers (microscopic particles)
  • Air contamination

Impact:

  • Fast diffusion through silicon at high temperatures
  • Creates mid-gap energy levels
  • Extremely potent – even 1 ppb = severe performance degradation

Example:

  • Copper at 10 ppb → Device leakage increases 1000x
  • Copper at 1 ppb → Device still functions, but reliability reduced by 50%

11N requirement: < 0.01 ppb copper (parts per trillion!)

Why 11N Specifically?

Different device types have different purity requirements:

Device Type Critical Impurity Threshold Typical Grade
CMOS Logic Copper, Nickel < 10 ppb 8-9N
Standard Power (400V) Iron, Oxygen < 1 ppm 9N
High-Power IGBT (600V) Iron, Carbon < 0.1 ppm 10N
Ultra-Reliable Power (1200V) All metals < 0.01 ppb 11N
Automotive/EV Critical Copper, Nickel Ultra-low 11N

11N is the sweet spot for:

  • Maximum reliability requirements
  • Extreme operating conditions (high temperature, high voltage)
  • Long-term mission-critical applications (EV, aerospace)
  • Where failure cost >> material cost

PART 3: HOW 11N PURITY IS ACHIEVED

The Czochralski (CZ) Crystal Growth Process

This is how INNOWAFERS produces ultra-pure silicon wafers:

Step 1: Ultra-Pure Silica Selection

  • Start with semiconductor-grade polysilicon (already 99.9999999%)
  • Cost: ₹200-300 per kg (vs. ₹5-10 for metallurgical grade)
  • This polysilicon is the foundation for all purity levels

Step 2: Crucible Selection

  • Quartz crucible used in CZ process (holds molten silicon)
  • Must be ultra-pure quartz (minimal iron, aluminum)
  • Cost: ₹5-10 lakhs per crucible (vs. ₹1-2 lakhs for standard)
  • Crucible life: ~50-100 ingot pulls (costs ₹50,000-100,000 per ingot in crucible cost)

Step 3: Furnace Atmosphere Control

  • Pure argon gas atmosphere (not regular air)
  • Oxygen/nitrogen levels: < 0.1% (vs. 21% oxygen in air)
  • Cost: ₹200-300 per m³ of ultra-pure argon (vs. ₹10-15 for regular argon)

Step 4: Precise Temperature Control

  • Melting point of silicon: 1414°C
  • Must maintain ±5°C accuracy over 12+ hour pull
  • Temperature gradient: Critical for dislocation-free growth
  • Equipment cost: ₹10-15 Crores for single CZ furnace

Step 5: Slow Pull Rate

  • Crystal pulled from melt at 2-5 mm/minute (vs. 10+ mm/min for lower grades)
  • Slower pull = lower defect density = higher purity
  • Time per 200mm ingot: 14-16 hours (vs. 8-10 hours for 8N)

Step 6: Ingot Slicing

  • Use diamond wire saws (not abrasive slurry)
  • Reduces kerf loss and contamination
  • Wafers sliced: 0.75mm ± 0.05mm thickness

Step 7: Surface Finishing

  • Chemical mechanical polishing (CMP)
  • Removes saw damage, contamination
  • Creates mirror-like finish (< 0.5 nm roughness)
  • Multiple cleaning steps with ultra-pure water

Step 8: Final Testing

  • Every wafer tested for impurity levels
  • GDMS (Glow Discharge Mass Spectrometry) analysis
  • X-ray diffraction for crystalline quality
  • Resistivity measurement

    PART 4: MEASURING 11N PURITY - TESTING METHODS

    GDMS (Glow Discharge Mass Spectrometry)

    What it does: Measures elemental composition by vaporizing wafer material and analyzing ionized atoms

    Detection capability: Parts per billion (ppb) to parts per trillion (ppt)

    11N Testing Protocol:

    • Sample wafer from each batch
    • Test 20+ elements (Cu, Fe, Ni, Cr, Zn, Ag, Pb, etc.)
    • Generate elemental profile
    • Certified report with each wafer lot

    Typical Results for INNOWAFERS 11N:


    Iron: 0.08 ppb
Copper: 0.005 ppb
Nickel: 0.01 ppb
Chromium: 0.02 ppb
Oxygen: 12 ppma
Carbon: 0.8 ppma

    X-ray Diffraction (XRD)

    What it measures: Crystal perfection, defect density, lattice strain

    Why it matters:

    • Even pure silicon can have crystal defects
    • Defects create recombination centers
    • 11N purity + low defect density = superior device performance

    11N Specification:

    • FWHM (Full Width Half Maximum) of rocking curve: < 20 arcsec
    • Indicates extremely uniform crystal structure

    Four-Point Probe Resistivity

    What it measures: Electrical resistivity of the wafer

    11N Silicon resistivity: 1-20 Ω·cm (typically 5-10 Ω·cm)

    Why it matters:

    • Resistivity directly relates to dopant concentration
    • Must be uniform across wafer
    • Non-uniformity → Device performance variation

    Specification: Uniformity across 150mm wafer: ±5%

    Surface Roughness (Atomic Force Microscope)

    What it measures: Nanometer-scale surface topology

    11N Specification: < 0.5 nm Ra (arithmetic mean roughness)

    Why it matters:

    • Epi-ready quality requires atomically smooth surface
    • Surface roughness affects epitaxial layer quality
    • Defects in epi layer → Device failures

    Thickness Uniformity (TTV Testing)

    What it measures: Total Thickness Variation across wafer

    11N Specification: TTV ≤ 10 μm (typically 7-9 μm)

    Why it matters:

    • Must be within ±5 μm of target 675 μm
    • Device fabrication requires uniform wafer thickness
    • Thickness variation → Different process results across wafer

    PART 5: IMPACT OF 11N PURITY ON DEVICE PERFORMANCE

    Case Study 1: 600V IGBT Power Module

    Device: 600V/100A Insulated Gate Bipolar Transistor

    Wafer Purity Comparison:

    Metric 8N Silicon 9N Silicon 11N Silicon
    Reverse leakage current 150 mA 80 mA 25 mA
    On-state voltage drop 1.8V @ 100A 1.6V 1.5V
    Switching time (turn-on) 250 ns 200 ns 180 ns
    Switching time (turn-off) 350 ns 280 ns 240 ns
    Power dissipation @ 10 kHz 250W 180W 140W
    Device reliability (10+ years) 85% 92% 98%

    Analysis:

    • Power dissipation reduction (8N→11N): 44% improvement
    • Reliability improvement: +15% (huge for automotive applications)
    • Cost premium: 80% (justified by performance/reliability)

    EV Application:

    • 5kW charger using 600V IGBTs
    • With 8N silicon: 500W heat dissipation = larger heatsink + fan
    • With 11N silicon: 280W heat dissipation = smaller, lighter heatsink
    • Vehicle efficiency gain: 3-5% (significant for EV range)

    Case Study 2: MEMS Accelerometer

    Device: 3-axis accelerometer for automotive airbag system

    Wafer Purity Impact:

    Parameter 9N Silicon 11N Silicon Difference
    Noise floor 0.8 mg/√Hz 0.3 mg/√Hz 2.7x quieter
    Sensitivity drift (over temperature) ±3% (-40 to +85°C) ±0.8% 3.75x improvement
    Long-term drift (10 years) 2% 0.2% 10x improvement
    False trigger rate 0.3% 0.01% 30x improvement
    Cost ₹200 ₹280 +40%

    Safety Implication:

    • False triggers in airbag systems are dangerous
    • 0.3% false trigger rate = 30,000 vehicles (out of 10M) falsely deploy airbags
    • 0.01% false trigger rate = 1,000 vehicles (out of 10M) falsely deploy
    • 11N purity makes the safety difference

    Case Study 3: 1200V Power MOSFET

    Device: High-voltage power switch for renewable energy inverters

    Wafer Purity Requirements:

    Reliability over 20+ year lifespan depends critically on absence of fast-diffusing metals (Cu, Ni):

    With 8N silicon (typical 10 ppb copper):

    • Copper diffusion during processing: Significant
    • Created defect clusters
    • Long-term reliability: 15-year MTBF
    • Suitable for: Industrial equipment (acceptable replacement rate)

    With 11N silicon (< 0.01 ppb copper):

    • Copper diffusion during processing: Negligible
    • Crystal perfection maintained
    • Long-term reliability: 25+ year MTBF
    • Suitable for: Utility-scale solar (mission-critical, no replacement option)

    Application: 500kW solar inverter

    • Running 24/7 for 20+ years
    • Failure = major revenue loss (₹50 lakh+ per day)
    • 11N wafer extra cost: ₹5,000 per device
    • Risk mitigation value: ₹50+ lakhs
    • ROI of premium purity: 100:1

    PART 6: TESTING 11N QUALITY - WHAT INNOWAFERS CERTIFIES

    INNOWAFERS 11N Wafer Certification

    Every wafer includes:

    1. GDMS Elemental Analysis
      • 30+ elements measured
      • Report shows ppb levels for each element
      • Certified by third-party lab
    2. Resistivity Certificate
      • Resistivity value (Ω·cm)
      • Uniformity across wafer
      • Doping profile verification
    3. X-ray Diffraction Report
      • Crystal quality metrics
      • Defect density estimate
      • Lattice perfection verification
    4. Surface Roughness Report
      • AFM scanning of multiple points
      • Average roughness (Ra)
      • Peak-to-valley measurements
    5. Thickness Uniformity Report
      • TTV measurement
      • Thickness map across wafer
      • Deviation from nominal 675 μm
    6. Traceability Documentation
      • Ingot ID and pull parameters
      • Crystal orientation verification
      • Lot number and batch certificate

    PART 7: WHY CHOOSE 11N OVER LOWER GRADES?

    Quick Decision Matrix

    Choose 8-9N if:

    • Consumer electronics (smartphones, tablets)
    • Standard industrial applications
    • Cost is primary driver
    • Reliability requirements: 3-5 years
    • Examples: Power supplies, basic motor drives

    Choose 10N if:

    • Automotive standard systems (non-critical)
    • Industrial power devices with heat management
    • Renewable energy (utility-scale, but with maintenance teams)
    • Reliability requirements: 5-10 years

    Choose 11N if:

    • EV power electronics (mission-critical for safety)
    • Aerospace/defense applications
    • Medical implants (lifetime devices)
    • Space applications (no replacement possible)
    • Ultra-high reliability renewable (isolated solar)
    • Long-term (15-25 year) mission-critical devices
    • Reliability requirements: 10-25+ years
    • Cost of failure >> cost of premium wafer

    INNOWAFERS 11N Advantage

    Quality Assurance:

    • 100% wafer testing (not sampling)
    • Direct manufacturer (no middlemen)
    • Technical support for device optimization
    • Custom specifications available

    Supply Consistency:

    • Batch-to-batch variation < 2% (vs. 5-10% for imported)
    • Reliable delivery (2-4 weeks vs. 8-12 weeks)
    • No geopolitical supply disruption risk

    Technical Partnership:

    • Wafer engineers available for consultation
    • Joint optimization with device makers
    • Early warning if wafer specs need adjustment

    CONCLUSION: PURITY IS PERFORMANCE

    11N purity silicon wafers aren't just a number. They represent:

    ✓ Removal of 99.99% of impurities compared to 8N ✓ 10+ billion fewer defect-causing atoms per wafer ✓ 30-50% better device performance in power applications ✓ 2-3x better long-term reliability for mission-critical applications ✓ Enabling technology for next-generation EVs, renewable energy, aerospace

    The difference between 8N and 11N might seem small on paper (three additional nines).

    In reality, it's the difference between a device that works for 5 years and a device that reliably performs for 25 years.

    For applications where failure is catastrophic or cost is prohibitive, 11N isn't a luxury—it's a necessity.

    Building high-reliability power devices? Requiring premium-grade silicon wafers?

    Partner with INNOWAFERS for 11N-purity 150mm wafers with certified quality.

Back to blog
